NEWS
New Products

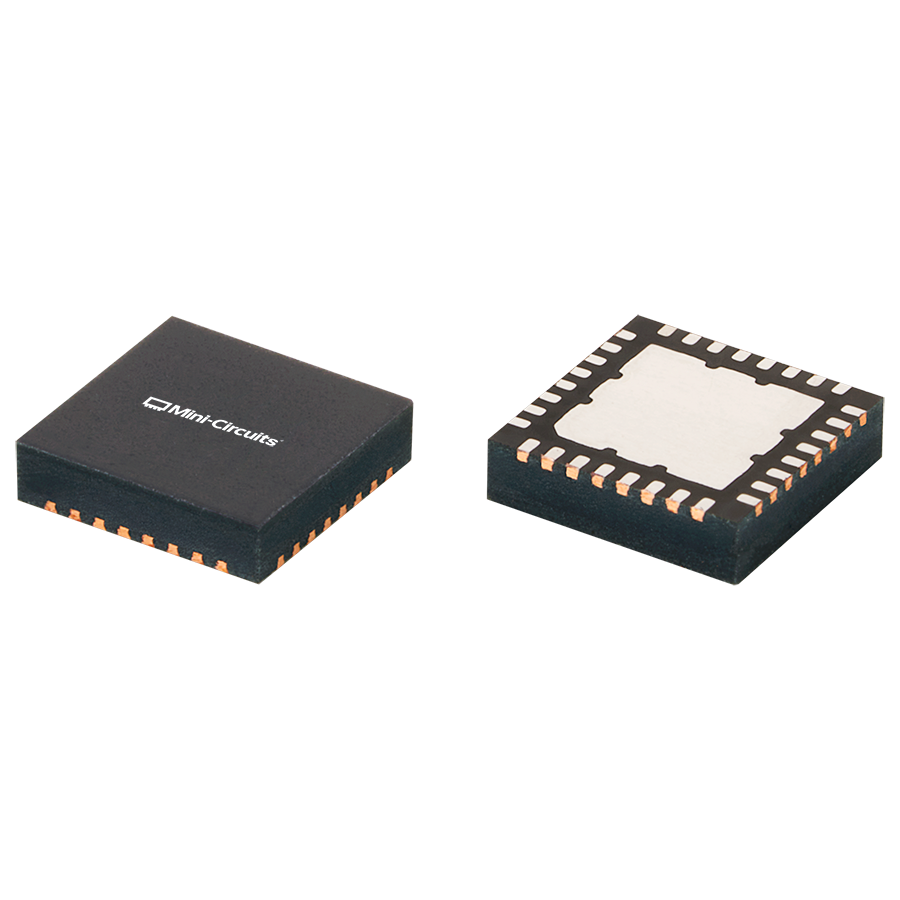

GNA-63-5W+ GaN MMIC Power Amplifier（10〜6000 MHz）
・10 〜 6000 MHz、50Ω
・PSAT +38.5dBm typ
・High output power of 6W or more(PIN = +26dBm)
・35% high efficiency PAE
・Operates on +28V power supply
・5×5mm 32-pin QFN package
・PSAT +38.5dBm typ
・High output power of 6W or more(PIN = +26dBm)
・35% high efficiency PAE
・Operates on +28V power supply
・5×5mm 32-pin QFN package

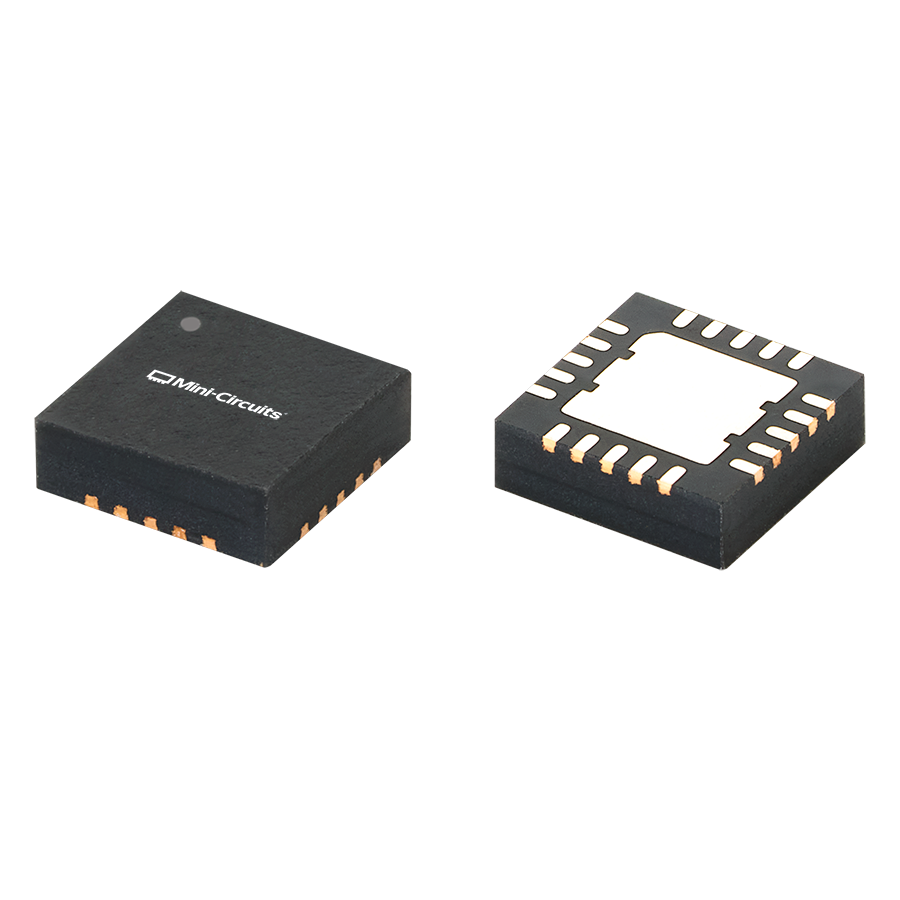

GNA-252-5W+ GaN MMIC Power Amplifier（10〜2500 MHz）
・10 〜 2500 MHz、50Ω
・PSAT +40dBm typ
・High output power of 8W or more(PIN = +26dBm)
・47% high efficiency PAE
・Operates on +28V power supply
・4×4mm 20-pin QFN package
・PSAT +40dBm typ
・High output power of 8W or more(PIN = +26dBm)
・47% high efficiency PAE
・Operates on +28V power supply
・4×4mm 20-pin QFN package

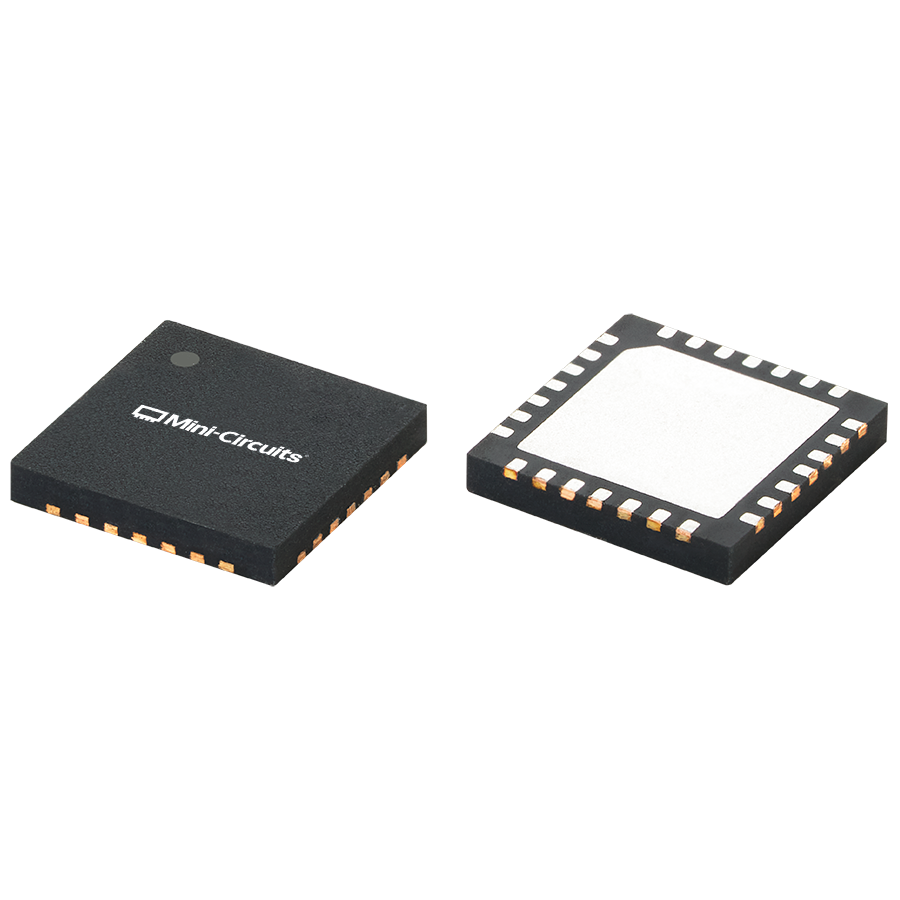

PMA6-xx-10W+ Series MMIC High-Power Amplifier
・Covers the main C-band to X-band frequencies (5.6–7.1 / 7.1–8.5 / 10.0–11.7 GHz), 50 Ω
・High output power of Psat: +39 dBm (approximately 8 W). Achieves the system’s final stage on a single chip
・High gain of up to 30.3 dB + excellent PAE of up to 32.6%
・High-linearity design optimized for high-PAR communication signals (OIP3 up to +47.1 dBm typ)
・Inputs and outputs fully matched to 50 Ω. Ready for immediate mounting with no external matching circuit required
・Compact 6×6 mm 28-lead QFN package
・High output power of Psat: +39 dBm (approximately 8 W). Achieves the system’s final stage on a single chip
・High gain of up to 30.3 dB + excellent PAE of up to 32.6%
・High-linearity design optimized for high-PAR communication signals (OIP3 up to +47.1 dBm typ)
・Inputs and outputs fully matched to 50 Ω. Ready for immediate mounting with no external matching circuit required
・Compact 6×6 mm 28-lead QFN package

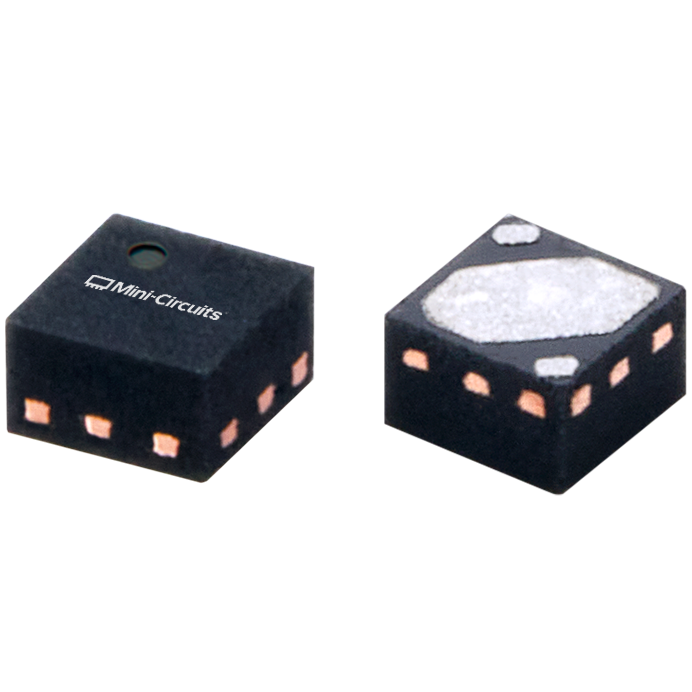

XAT Series Ultra-Compact 1×1 mm MMIC Fixed Attenuator
・Broadband DC to 45 GHz, 50 Ω
・Industry’s smallest-class 1×1 mm 2-terminal QFN package
・High input power handling, up to 2 W
・Excellent return loss (15 dB typical)
・Bidirectional, fully absorptive design based on a GaAs process
・Lineup of 0 / 3 / 4 / 6 / 10 dB (5 / 30 dB also coming soon)
・Industry’s smallest-class 1×1 mm 2-terminal QFN package
・High input power handling, up to 2 W
・Excellent return loss (15 dB typical)
・Bidirectional, fully absorptive design based on a GaAs process
・Lineup of 0 / 3 / 4 / 6 / 10 dB (5 / 30 dB also coming soon)

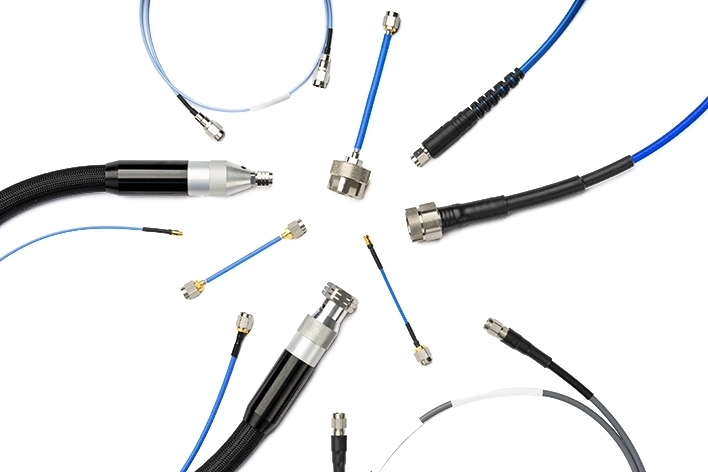

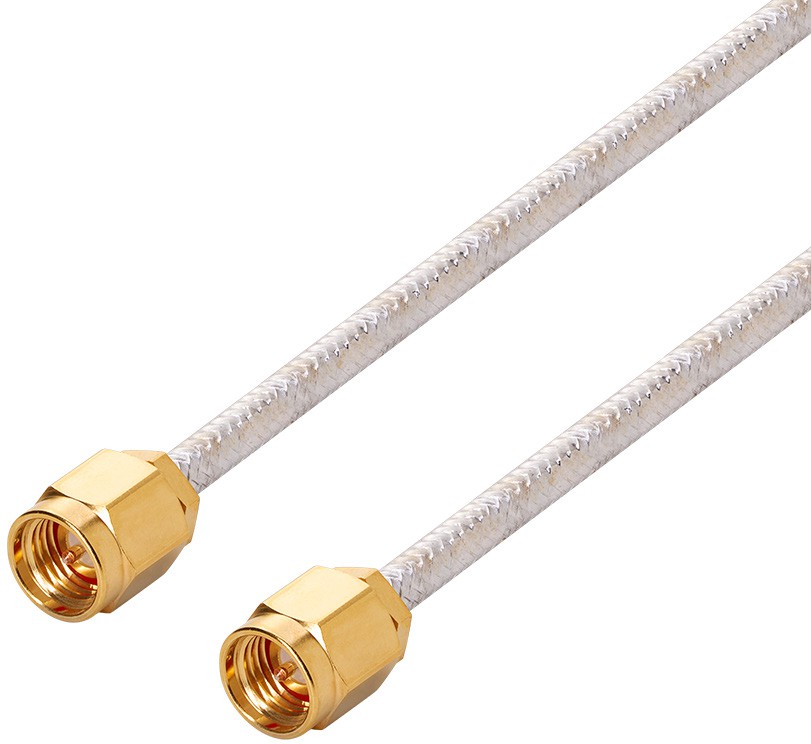

DC-18GHz Non-Magnetic Flex Cables
・Ideal for cryogenic environments
・Non-magnetic, nickel-free construction
・0.086” and 0.141” outer diameters
・SMA, SMP and SSMP connector options
・Standard lengths from 10 to 50 cm in stock
・Custom configurations available on request
・Non-magnetic, nickel-free construction
・0.086” and 0.141” outer diameters
・SMA, SMP and SSMP connector options
・Standard lengths from 10 to 50 cm in stock
・Custom configurations available on request

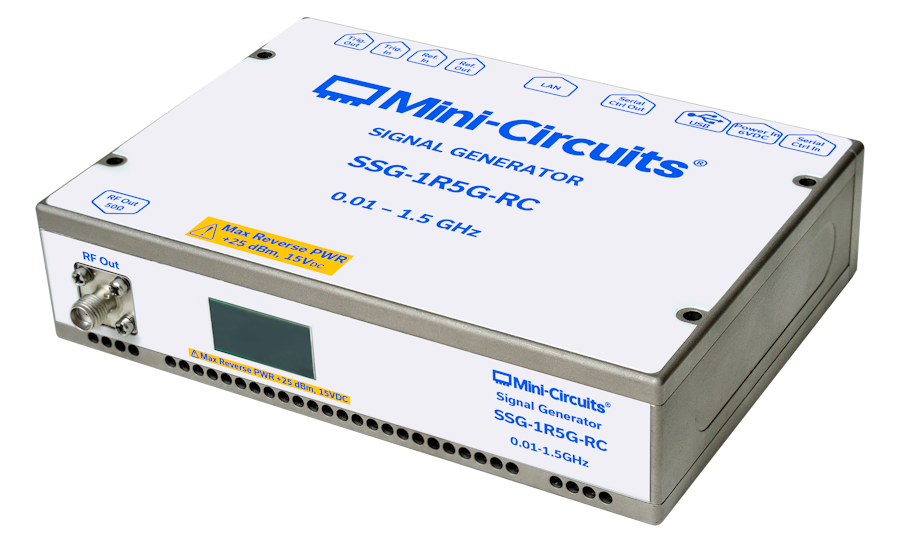

SSG-1R5G-RC Signal Generator
・Low Cost
・0.01 to 1.5 GHz
・High Output -60 to +23 dBm
・Low Phase Noise, Low Harmonics
・SMA Connector
・0.01 to 1.5 GHz
・High Output -60 to +23 dBm
・Low Phase Noise, Low Harmonics
・SMA Connector
